Manunan Impormasyon
|
Materyal |
Carbon Steel, Stainless Steel, Copper, Aluminum |
Saray manunan punto na panlako |
Eco-Makaaro, Abeba so Gastos ed Panmintina, Andukey so Serbisyo |
|
boltahe |
220 V, 380 V |
Klase na Heat Exchanger |
Tube Heat Exchanger |
|
Sankatageyan ya temperatura ed panagkimey |
500℃(932℃F) |
Kapasidad na Agos |
Ipasadya |
|
Pankakasakey na Pluido |
Larak, Danum, Singaw, Refrigerant, Gas |
Say temperatura na trabaho |
100~500℃(212~932℃F) |
|
Saray manunan kabiangan |
tubo ya walay palikpik to |
Garantiya |
1 Taon |
|
Report ed panagsukimat ed makinarya |
Inikdan |
Video outgoing-inspection |
Inikdan |
|
Lugar ya nanlapuan |
Guangdong, China |
Belat (KG) |
200 |
|
Ngaran na tatak |
Hylita |
Liquid Flow Rate |
1.39~10 L/s |
|
Sankatageyan ya Pressure Rating |
Manduruman |
Dimension(l*w*h) |
Inpasal ya Ginawa |
|
Aplikasyon |
Panagpainit na dagem, panagpainit na singaw, Panagpainit tan Pamamaga |
Klase na heat exchanger |
Finned Tube Heater Exchanger |
|
Ngaran na Produkto |
Panagbawi na Basura ya Petang |
Materyal na tubo tan palikpik |
Gansa, CuNi, Stainless steel, Aluminium, carbon steel, Titanium |
|
Materyal na frame |
Stainless Steel, GI plate, Aluminum plate |
Pakabidbiran |
Atagey ya episyente ed enerhiya-abeba so gastos ed operasyon |
|
klase na palikpik |
Patatdang, abel, abel, Makinis a tubo |
tapew na palikpik |
Epoxy (balitok), Blue (hydrophilic), Powder paint, Bare |
|
Panag-impake |
Kiew ya Kahon |
Likido ed tubo |
Danum, ammonia, glycol, Refrigerant |
|
Manlalako na Yunit |
Sakey ya aytem |
Sakey a sukat na pakete |
77X112X138 cm |
|
Sakey a gross weight |
238.000 kg |
Deskripsion na saray produkto

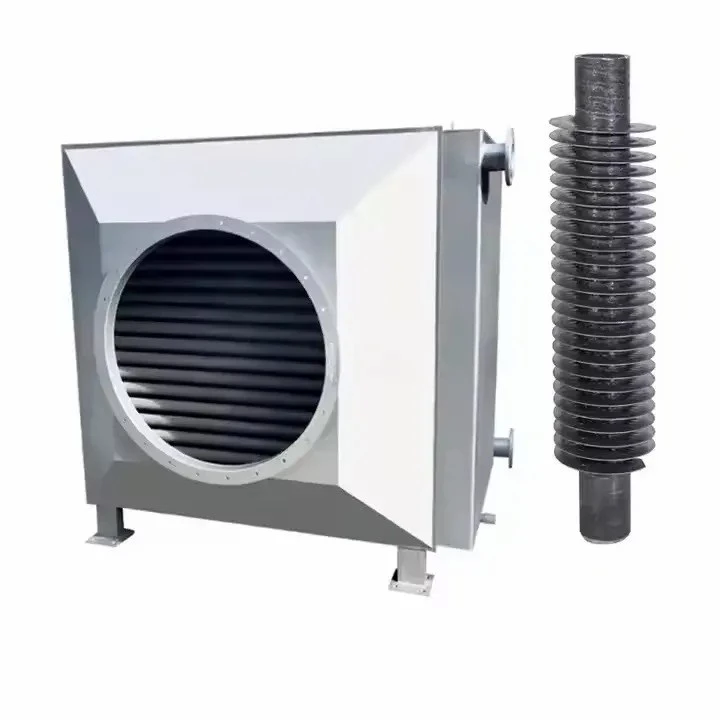

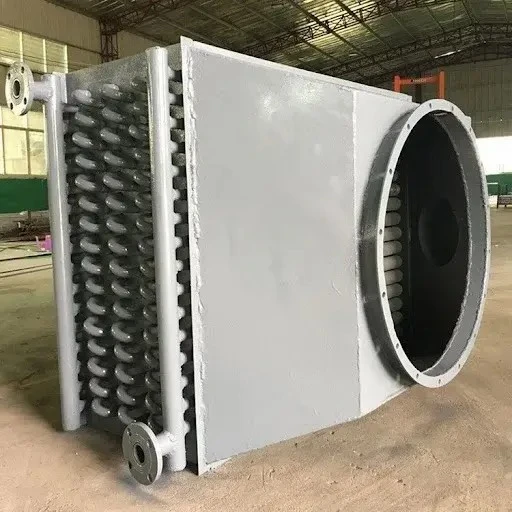

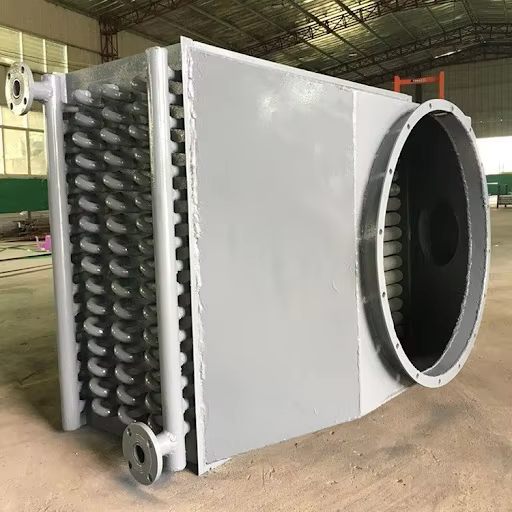

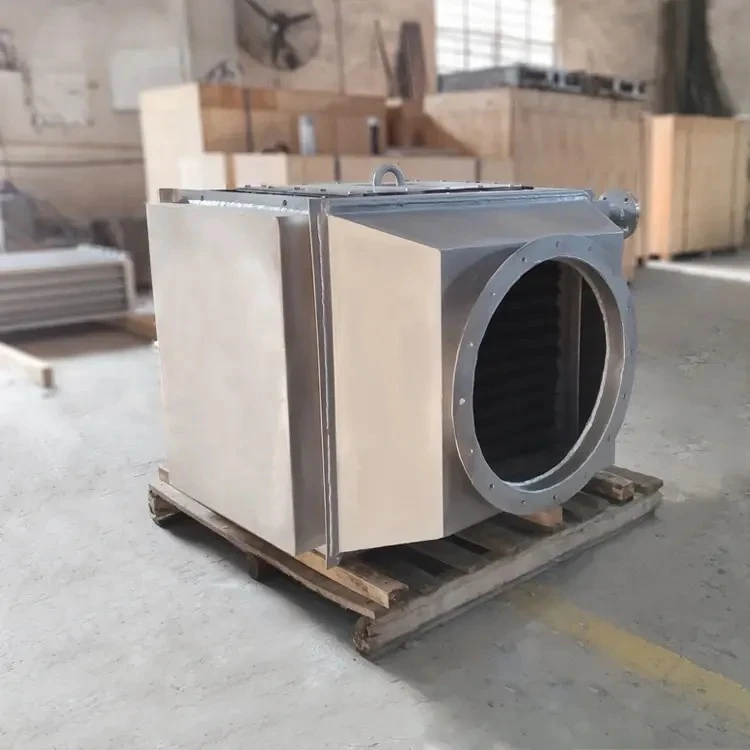

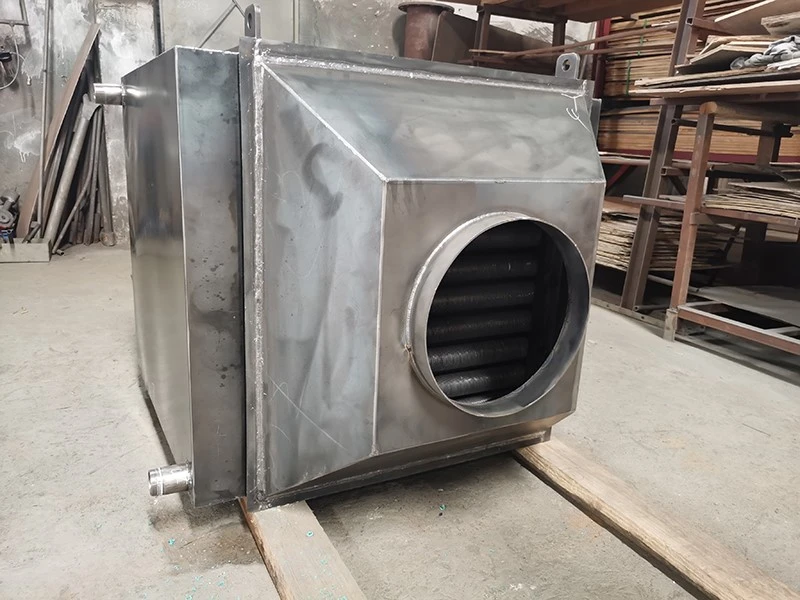

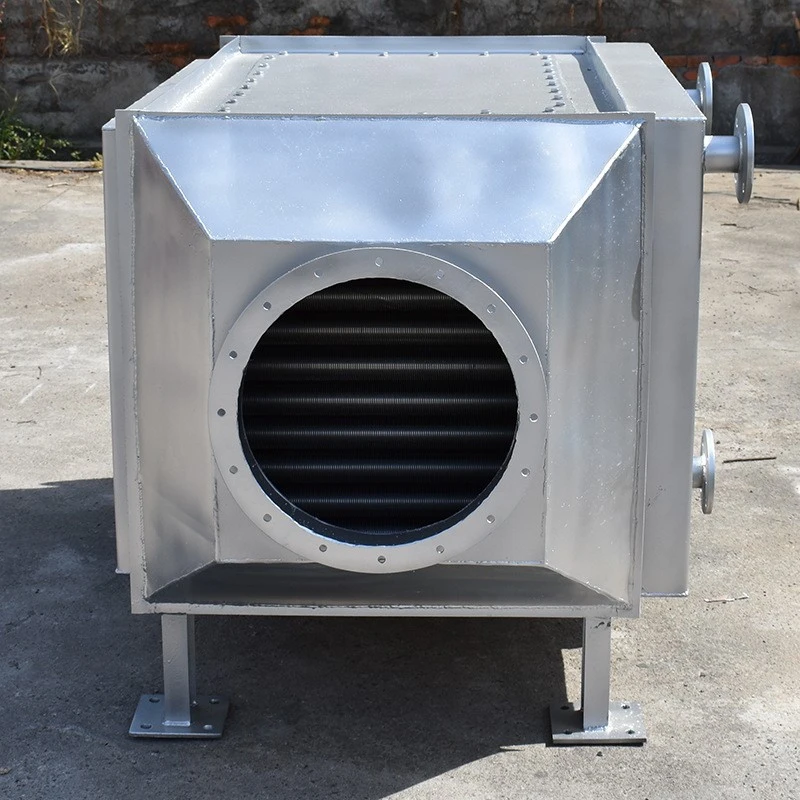

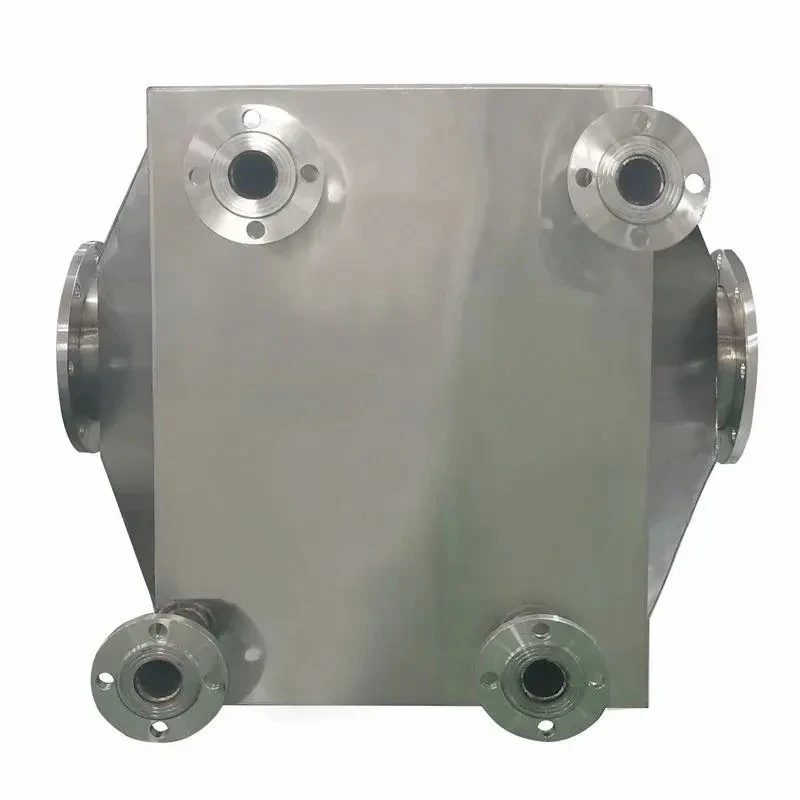

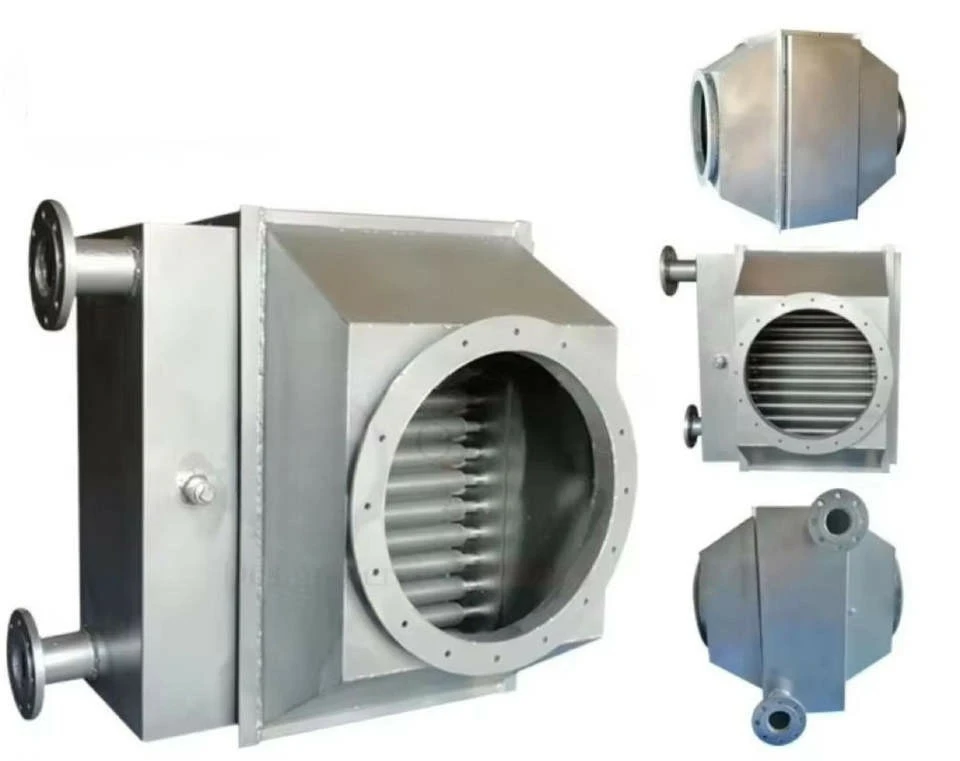

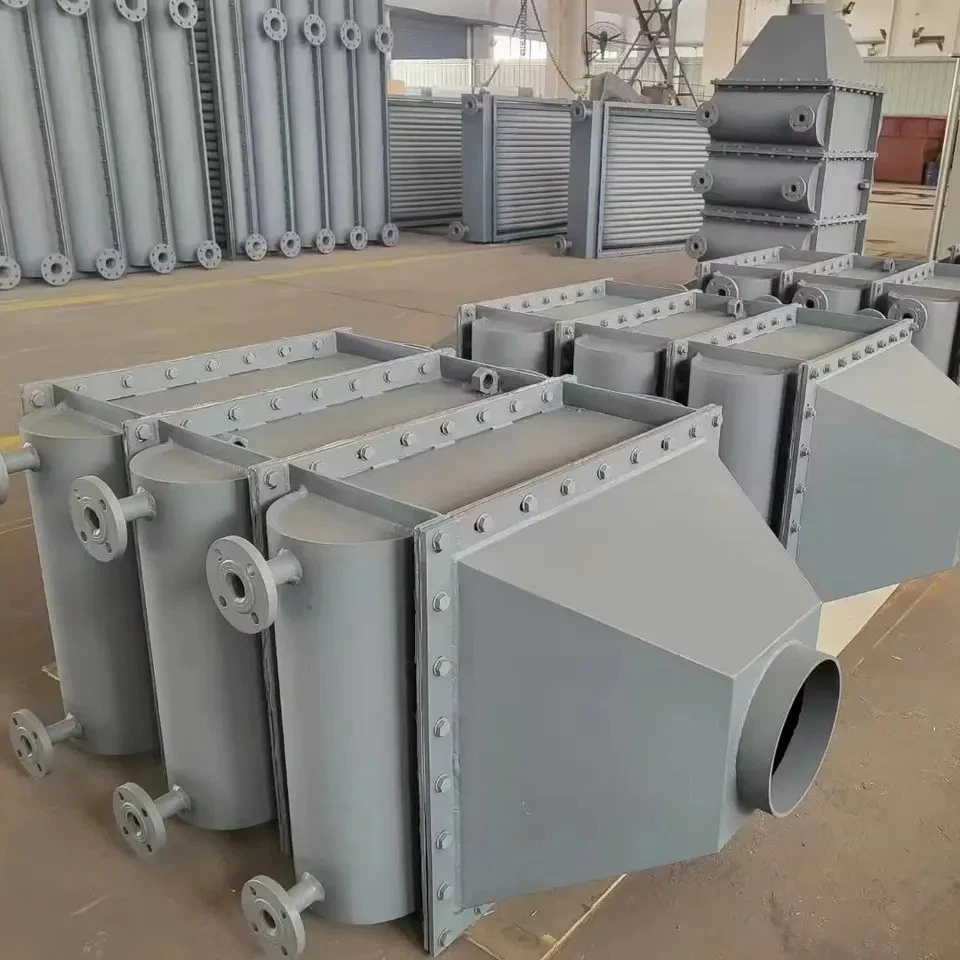

Industrial Finned Tube Economizer Waste Heat Recovery System
Malaknab so Makatipid na Enerhiya: Saray Advanced Waste Heat Recovery Solutions
Bawasan so gastos ed gasolina panamegley na Corrosion-Resistant Stainless Steel Heat Exchanger mi. Ginawa parad makaderal ya flue gas, tan nabawi to so basura ya petang parad saray boiler tan makinan panag-imprinta. Sayan yunit so mangiseguro na andukey a panaon na panagtipid tan inkadukey ed saray kaliberliber ya mayaman ed asido a ditan et ag-onkukurang so carbon steel.
Saray Manunan Bentaha
Makatipid na Enerhiya:Nabawi so petang na tambutso pian napainit so danum/dagem, ya makatipid na 15% ya gasolina.
Oval Tubes:Say aerodynamic ya oval ya desinyo et mamapaabeba ed resistensya na dagem tan say karga na pakayari na bentilador.
Usaren ed Panag-imprinta:Perpekto parad pamasiansia na eksakton temperatura ed panag-imprinta na hot oil systems.
Atagey ya Epektibo:Saray spiral fins et mamalaknab ed tapew na tapew parad maples ya iyalis na petang.
Proof na Leak:Say high-frequency welding et mangiseguro na 100% ya bond ed baetan na palikpik tan tubo.
Custom Size:Inadapta iray sukat pian nauman iray wala lan boiler odino dryer ducts.
Mainomay ya Linisan:Say makinis ya stainless ya tapew et ag makapeket so soot tan mamagaan ed panag-uras.
Durability:Ginawa parad 15+ taon ya serbisyo ed mairap iran kemikal ya kaliberliber.
Atagey a Temperatura:Sarag ton asikasoen so temperatura na tambutso ya anggad 500℃ya napanmatalkan.
Teknikal iran Detalyado

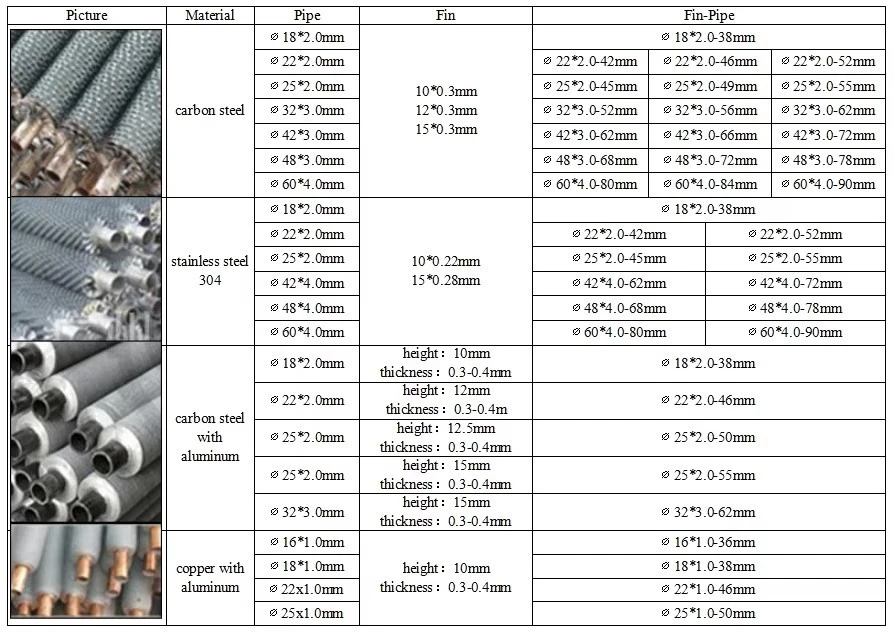

● Tube & Fin Material: Copper, CuNi, Stainless steel, Aluminium, Hot dip steel, Titanium
● Teknolohiya na Palikpik: High-Frequency Welding / Laser Welding
● Thermal Efficiency: masulok ya 95%:
● Heat Transfer Area: 5-500 m2 (nayarin i-customize)
● Max Pressure: 0.5–4.0 MPa (72–580 psi)
● Kapasidad na Dagem: 500-50,000 m3/h
● Max Operating Temp:Anggad 800℃(Customizable)
● Pressure Drop (Air)50–300 Pa (0.2–1.2 inH2O)
● Design Standard: ASME / GB / ISO 9001
● Heat Medium: Saturated Steam, Thermal Oil, Hot Water
Saray Aplikasyon
● Gas/Oil Fired Boiler Exhaust
● Textile Printing Stenter Machines
● Panagbawi na Gas ed Basura na Kemikal ya Planta
● Saray Hurnoan ya Panagproseso na Tagano
● Panagpainit ed Kuarto ya Uusaren ed Parmasyutika
● Marine Engine Exhaust Economizers
● Paper Mill Ventilation Systems
Saray Manunan Tampok
2. Walay maaligwas ya teknolohiya na Oval Tube parad mas maong ya iyaagus na dagem.
3.Istrikton pasivation treatment pian napaaligwas so resistensya ed corrosion.
4. Nayarin i-customize so fin pitch pian naasikaso so marutak odino particle-heavy flue gas.
5. Panumbok ed saray estandarte na food-grade parad saray aplikasyon ed kalinisan.
Akin et Pilien Kami
Industry Coverage & Product Offers
Mangiiter kami na komprehensibon portfolio na saray heat exchanger ya manseserbi ed saray sektor na industriya, naakan tan iinumen, HVAC, marine, air handling tan cooling, petrochemical, power generation, tan refrigeration.
1) Mangiyoopresi kami na sigpot a suporta manlapud desinyo na produkto anggad panaggawa, pankimey unong ed saray detalye yo odino pankokolabora ed saray custom ya desinyo.
2) Saray produkto mi et ni-export ed nanduruman bansa ed interon mundo, kaiba lay Israel, USA, Germany, tan Canada.
3)seguroen ya maples so ebat ed saray tepet mo, ya kaslakan et onebat ed loob na 24 oras. Parad saray apuradon pamaakaran, agkayo mapaga ya tawagan kamin direkta. 4)Determinado kamin mangiter na epektibon serbisyo, napanmatalkan a kalidad, tan pamasiansia na ekselentin reputasyon. 5)OEM&ODM,Wala so heat exchanger design software mi ya uusaren nen Guentner tan Cabero, Mangiyoopresi kami na tailor{{5}coating tan cooling unit.
Desinyo na Inhenyeriya
Uusaren mi labat so HTRI tan EDR design software manlapud sakey a bantog ya software provider ed Europa.
Diad loob na 18 taon ya estratehikon pankakasakey, matalona kamin akadesinyo, akagawa, tan aka-export na heat exchanger ed masulok ya 50 bansa ed interon mundo.
Say feedback na saray kustomer et naynay ya mamaneknek ya say aktual ya cooling performance et eksakton mipara ed saray teoretikal ya desinyo.

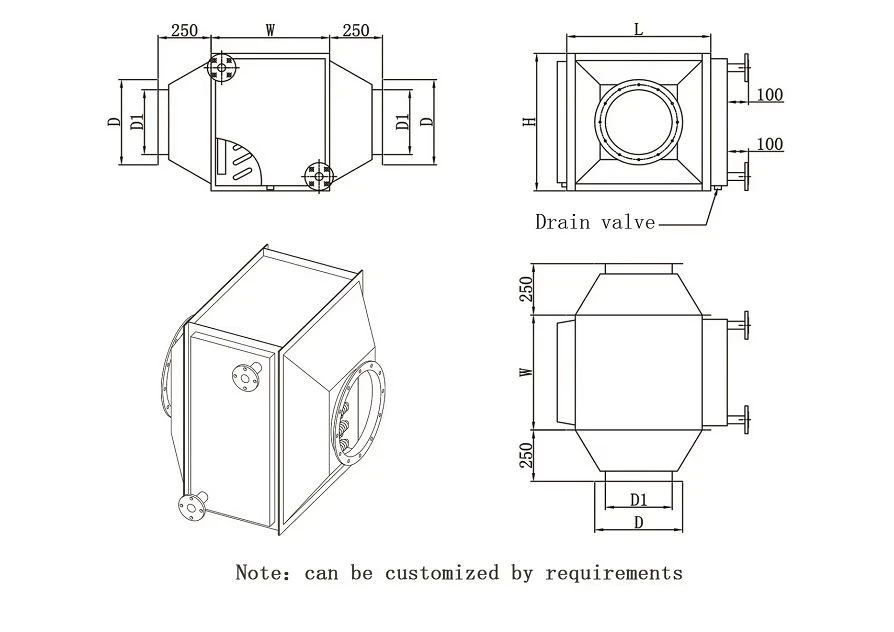

Sarag mi so mangiter na detalyadon drowing kayari na order yo. Sarag mi met ya iter so Custom services.
|

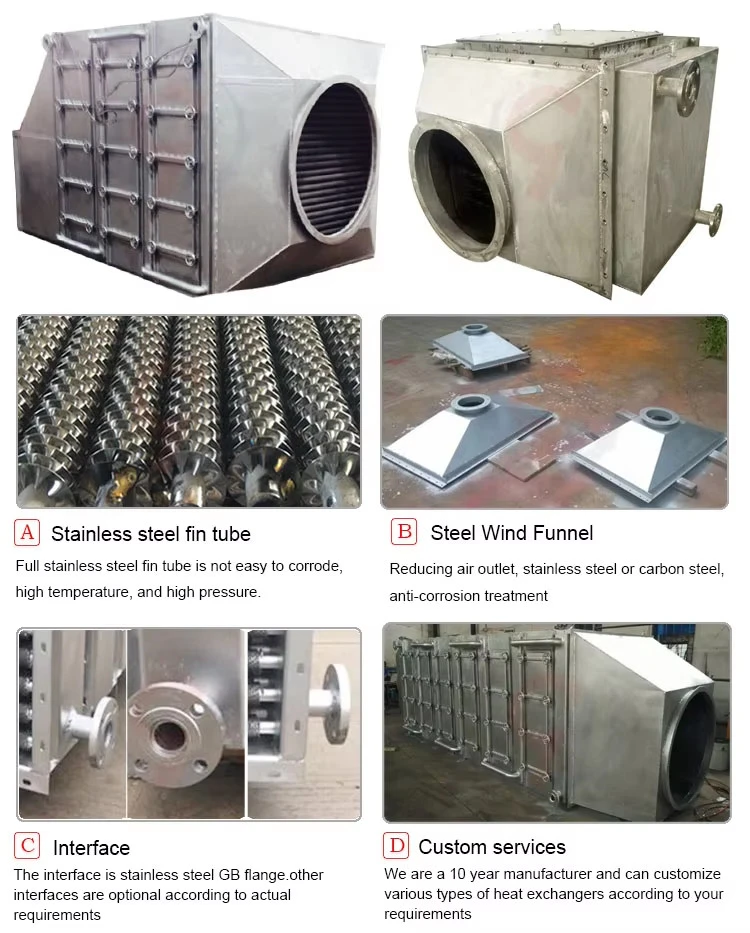

Saray Features na Boiler Economizer mi |
|
|
Saray Espesipikasyon ed Gagawaen |
● Heat Transfer Area: 5–500 m2(nayarin i-customize) ● Max Steam Pressure: 0.5–4.0 MPa (72–580 psi) ● Temperatura na singaw: 100-500℃(212-932℃F) ● Kapasidad na Dagem: 500-50,000 m3/h ● Thermal Efficiency: masulok ya 95% ● Pressure Drop (Air): 50-300 Pa |
|
Heat Plates/Tubes |
● Materyal: Gansa, CuNi, Stainless steel, Aluminium, carbon steel, Titanium (nayarin i-customize) ● Sankaabigan Parad: Makaderal/Atagey-Temp Steam |
|
Saray Palikpik ed Dagem |
● Materyal: Aluminium, Corten Steel (nayarin i-customize) ● Sankaabigan Parad: Madabok/Asidon Dagem |
|
Gaskets/Seals |
● Materyal: EPDM, PTFE, Graphite ● Sankaabigan Parad: Pangipuera ed Panag-awas na Singaw |
|
Frame/Casing |
● Materyal: Carbon Steel (Pintado),SS304 ● Sankaabigan Parad: Inkabiskeg na Estruktura |
|
Panubok |
Saray heat exchanger et niiter ya malinis tan nasubok ed pressure ya 30 bars |
|
Saray Opsyon ed Panagpasadya |
● Explosion-Proof Design(ATEX/IECEx certified) ● Self-Cleaning Mechanisms(Parad saray aplikasyon na dabok ya dagem) ● Hybrid MVR(Mechanical Vapor Recompression) Integration |

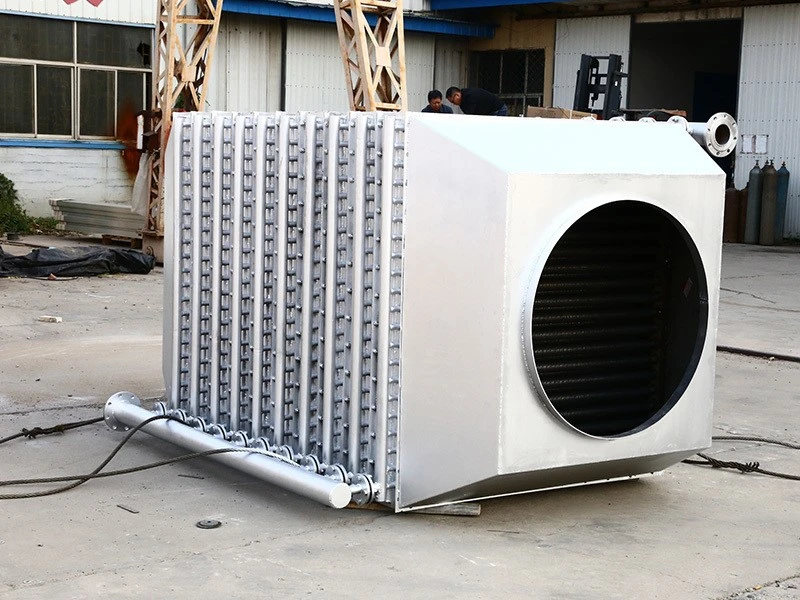

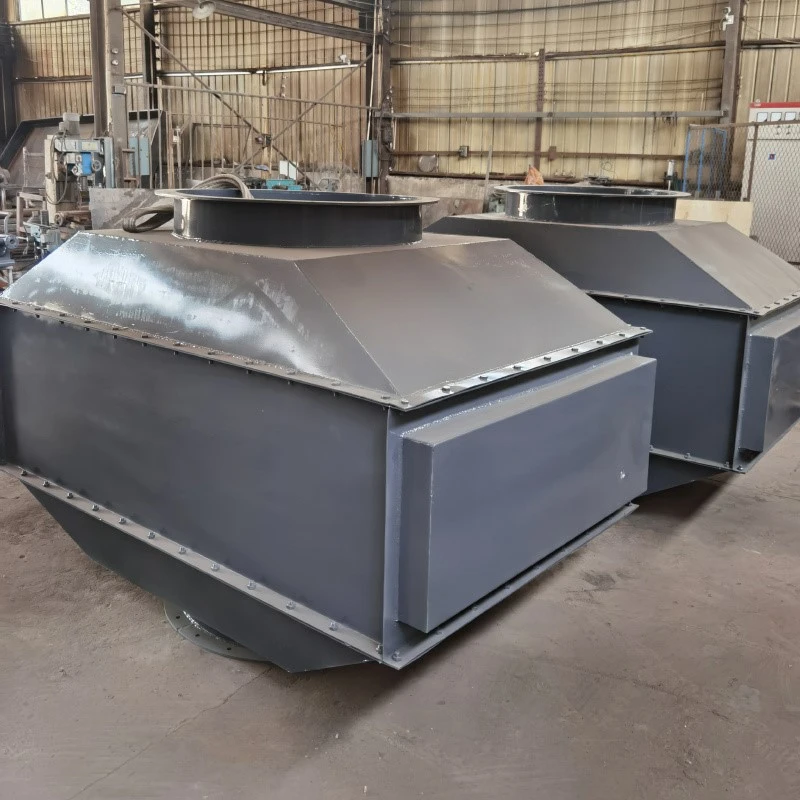

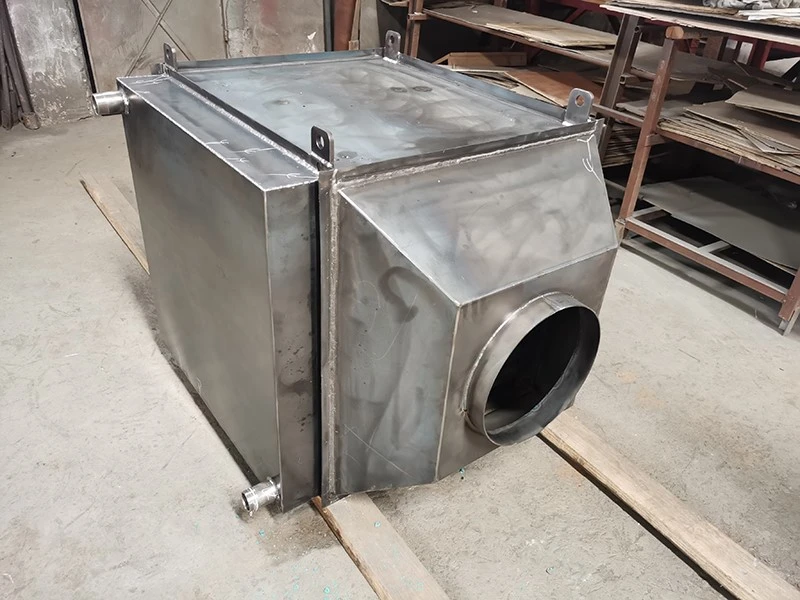

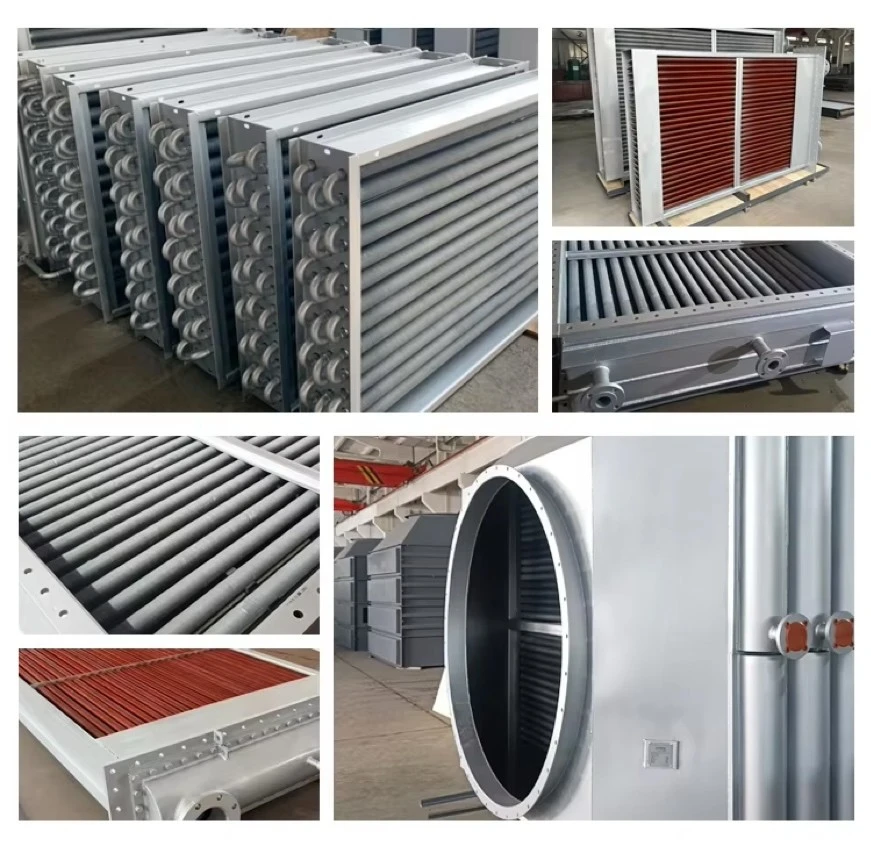

Litrato na Kaso na Kustomer
Aplikasyon: Marine Diesel Exhaust Heat Recovery Materyal: Tubo
- Stainless Steel 304; Fin
- Aluminium (walay hydrophilic coating) Supply Power: 230V / 1P / 50Hz
Aplikasyon: Hot Blast Stove Flue Gas Heat Recovery
Materyal: Tube & Fin - Corten Steel (ND Steel) Supply Power: 415V / 3P / 50Hz
Aplikasyon: Proseso na Kemikal a Panagpalamig na Gas tan Panagpawala na Singaw
Materyal: Tubo - Stainless Steel 316L; Fin - 316L Supply Power: 400V / 3P / 50Hz
Aplikasyon: Textile Tenter Frame Exhaust Heat Recovery
Materyal: Tubo - Carbon Steel (galvanized); Fin - Aluminium Supply Power: 400V / 3P / 50Hz
Aplikasyon: Pan-sterilize na Tagano Flash Steam Recovery
Materyal: Tubo - Gansa; Fin - Copper Supply Power: 480V / 3P / 60Hz
Aplikasyon: Cement Kiln Exit Gas Heat Recovery
Materyal: Tubo- Carbon Steel; Fin- Carbon Steel (Aluminized) Supply Power: 380V / 3P / 50Hz
Aplikasyon: Sintering Furnace Exhaust Steam Recovery
Materyal: Tubo - Alloy Steel (15CrMo); Fin- Stainless Steel 321 Supply Power: 380V / 3P / 60Hz
Aplikasyon: Gas Boiler Flue Gas Condensing Heat Recovery

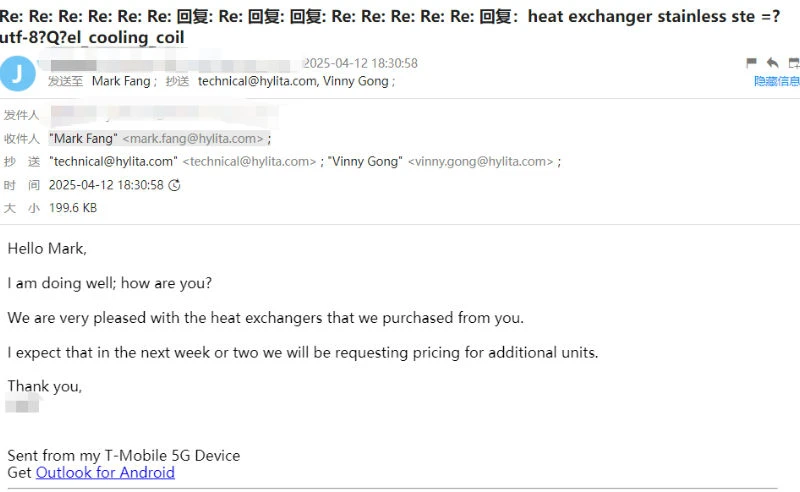

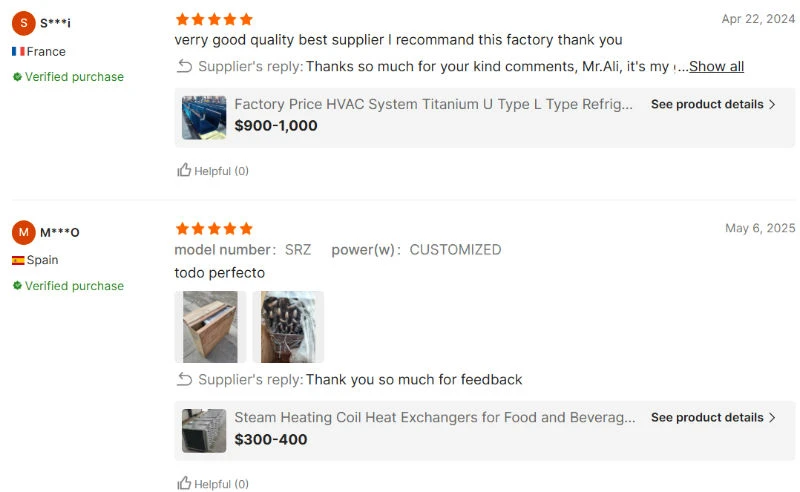

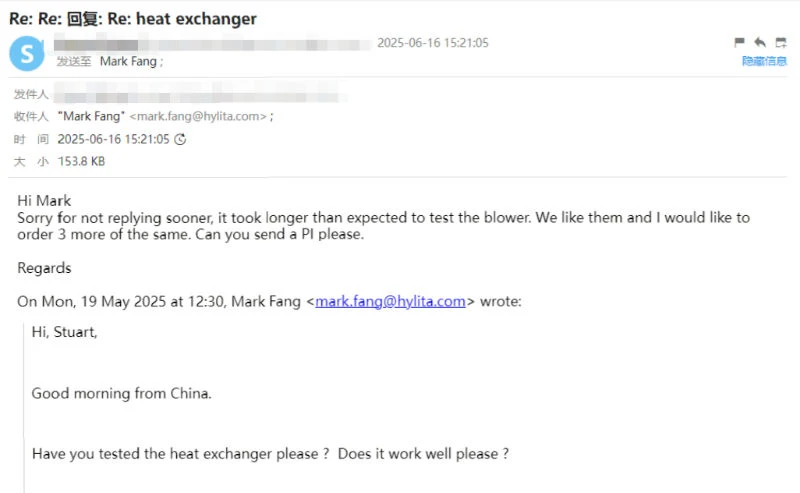

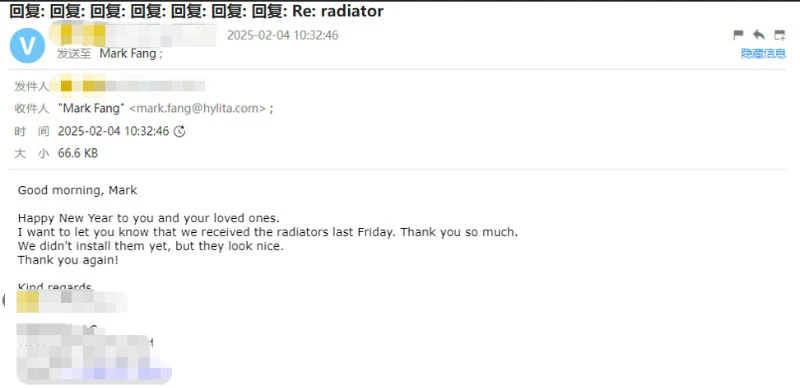

Materyal: Tubo - Stainless Steel 316L; Fin- Aluminium (walay epoxy coating) Supply Power: 400V / 3P / 50Hz Customer Feedback

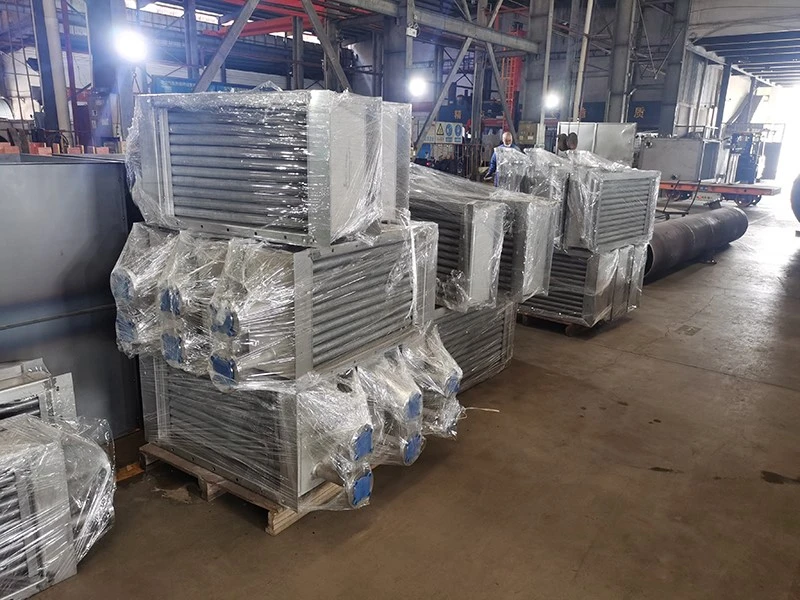

Pampampake tan Pangiter
Say estandarten pambalot et saray kahon ya gawad kiew.
Parad saray ipapaway ed saray bansa ed Europa, saray kahon ya gawad kiew et manpa-fumigation treatment.
No limitado so espasyo ed pananginan, sarag tayon usaren so PE film packaging odino asikasoen iray espisyal ya kerew na saray kustomer.

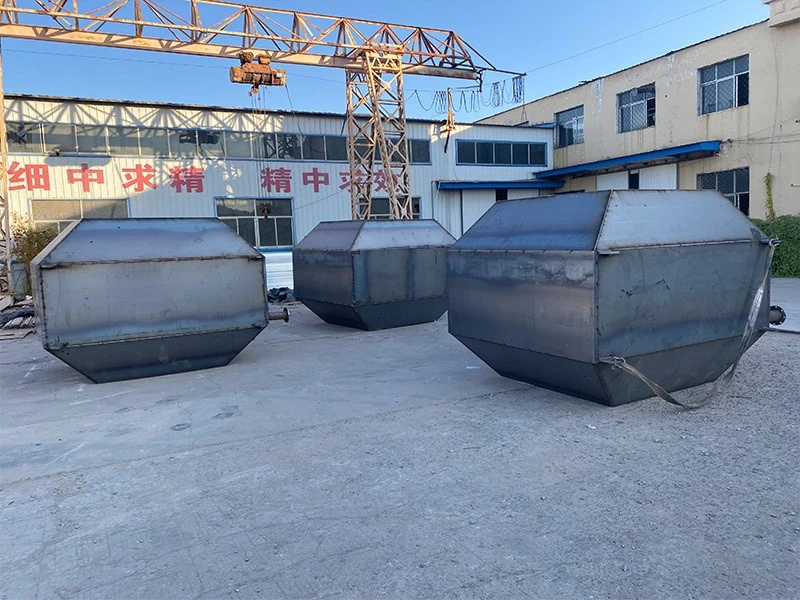

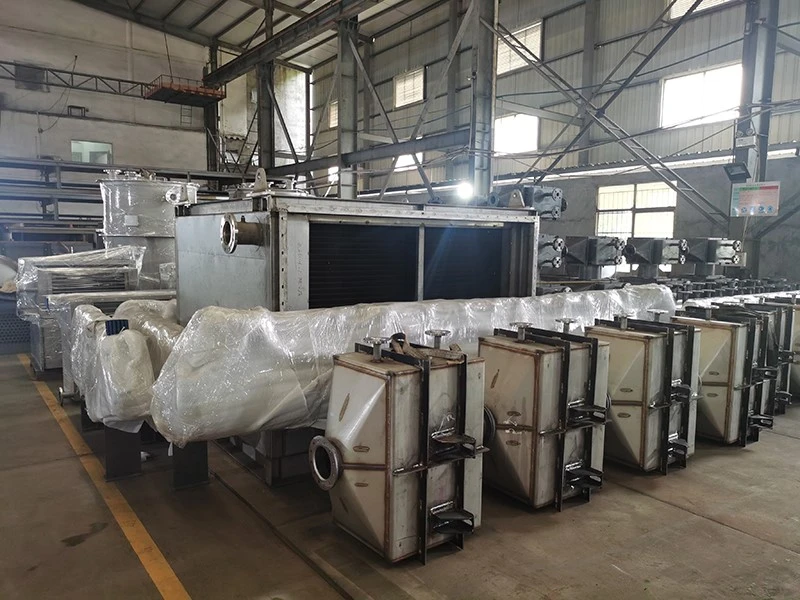

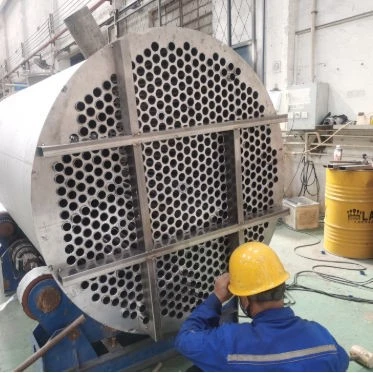

Say Planta Mi
akin et pilien iray produkto mi
Shenzhen Hylita Heat Exchanger Co., Ltd.
Say hedkuarter mi et walad Shenzhen, tan saray sangan opisina mi et walad Guangzhou, Tangshan, tan Wuhan.
Mangiiter kami na komprehensibon portfolio na saray heat exchanger ya manseserbi ed saray sektor na industriya, naakan tan iinumen, HVAC, marine, air handling tan cooling, petrochemical, power generation, tan refrigeration.
Saray heat recovery units (Boiler Economizers) et walad parehon direct-replacement models (100% compatible ed OEM specifications) tan sigpot ya nipasal iran configuration ya ginawa pian nasumpal iray espisipikon kakaukolanen ed aplikasyon.
FAQ
1.Order Security tan Online Transactions
T: Sarag tayoy man-order panamegley na Alibaba Trade Assurance parad kaligenan?
A: On, ipapaseseg min maong itan! Say Trade Assurance et manseguro na 100% ya bayar mo. No ikompara ed 10-taon ya awaran na panaggawa mi, sarag mon i-order so unonan order mo ya walay sigpot a kompiyansa.
2. Kontrol ed Kalidad
T: Panon mon naseguro so kalidad antis ya ipawit?
A: Say reputasyon mi et akaletneg ed 4 ya manunan kalidad na lusek
✅ Eksperyensya: Espisyal a manggagawa na produkto manlapu nen 2015 (10+ Taon) .
✅ Saray sertipikasyon: ISO 9001:2015, CE, ROHS
✅ Kaseguroan: 100% ya pressure testing ed kada yunit antis ya ipawit
✅ Global Trust: Matalonan manlilingkor ed saray kliyente ed masulok ya 50+ bansa.
3. Desinyo tan Kalkulasyon
T: Anggapoy drowing? Sarag moy mandesinyo parad siak?
A: On! Uusaren mi so HTRI software parad eksakton sukat. I-share mo labat so operating data mo (Temp/Flow), tan mangiter kami na propesyonal ya desinyo parad panangabobon mo.
4. Minimum ya karakel na order (MOQ)
Q: Antoy MOQ? Sarag ko kasi so man-order na melag?
A: Say melag ya order et awaten met ed kompanya mi.
5. Serbisyo na Garantiya
T: Panon kabayag so sakop na garantiya?
A: Mangiyoopresi kami na nababalang iran opsyon na garantiya ya mipara ed saray pankaukolan yo:
✅ Standard: 12-bulan parad amin ya order.
✅ Inpalaknab: Anggad 24-bulan parad saray kualipikadon customized ya order (kompirmaen ed grupo mi).
6. Panagpasadya
T: Susuportaan mo kasi so OEM/ODM tan custom branding?
A: On, wala so sigpot a panagpasadya. Susuportaan mi ray custom ya materyales (Copper, SS304/316, Cu-Ni) tan mangiyoopresi kami na Laser Marking tan Nameplates pian perpekto so logo yo.
7. Panangiter na Serbisyo
Q: Panon yo ak ya ipapaamta ed saray order ko?
A: Iseseguro mi so 100% ya Transparency na Proseso
✅ Doble ya Kumpirmasyon: Amin ya detalye et na-verify antis ya onggapo so produksyon..
✅ Visual Updates: Mangipapawit kami na saray litrato/video na iyaaligwas na panaggawa.
✅ Repasoen so Dokumento: Saray draft a dokumento (B/L, Invoice) so ipawit parad aprobasyon mo antis ya pinal ya ipaway pian napaliisan iray lingo.
8. Saray Manunan Produkto
Q: Anto ray manunan produkto yo?

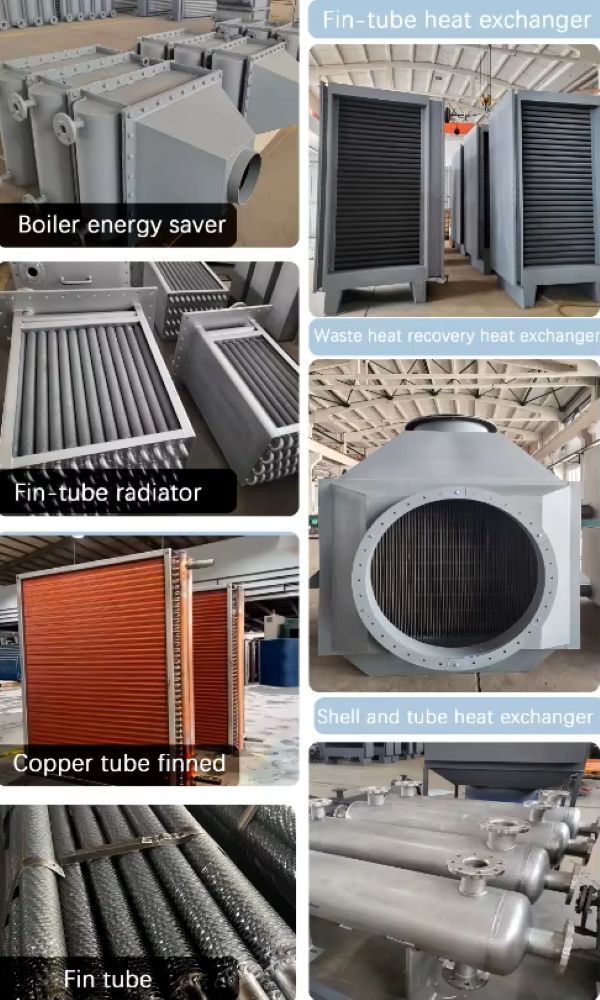

A: Manunan manggagawa kami na saray air heat exchanger, surface coolers, evaporator coils, condenser coils, shell tan tube heat exchangers, plate heat exchangers tan arum niran kagawaan ed panagsalat na petang tan amin a klase na tubo ya walay palikpik to, heat exchange accessories, tan arum nira.
